Wavelength Calibration Surface Light Source (300 × 300 mm)

The 3-Wavelength Calibration Surface Light Source is designed for applications that need precise, stable, and uniform illumination. It combines three wavelengths, 395nm, 420nm, and 450nm, into a single high-performance LED surface light system.

Wavelength Calibration Surface Light Source (300 × 300 mm)

Category Mixed-wavelength Light Source

This product is ideal for calibration, testing, and industrial processes where consistent light intensity and uniform coverage are important.

Key Features

Three wavelengths in one unit: 395nm, 420nm, 450nm
High irradiance output for strong and effective illumination
Excellent uniformity across the light surface
Adjustable power from 5% to 100%
Stable constant current driving system
Efficient air cooling for long working hours
Compact and durable design
Independent control for each wavelength channel

Technical Specifications

Parameter	Specification
Maximum Irradiance (UVA 395/420nm)	465 mW/cm²
Maximum Irradiance (Blue 450nm)	486 mW/cm²
Irradiation Distance	50 mm
Emitting Area Size	300 × 300 mm
Effective Uniform Area	250 × 250 mm
Max Electrical Power (395/420nm)	650 W
Max Electrical Power (450nm)	593 W
Light Source Dimensions	354 (L) × 354 (W) × 100 (H) mm
Driver Dimensions	496.5 (L) × 208.5 (W) × 168 (H) mm
Weight (Single Unit)	Approx. 6 kg
Cooling Method	Air Cooling
Power Adjustment	5% – 100%
Control Mode	Constant Current Driver
Multi-Wavelength Control	3 Independent Channels
LED Fault Detection	Available

Performance

UVA (395nm / 420nm)

Maximum Irradiance: 465 mW/cm²
Minimum Irradiance: 398 mW/cm²
Average Irradiance: 434 mW/cm²
Uniformity: Approx. 91%

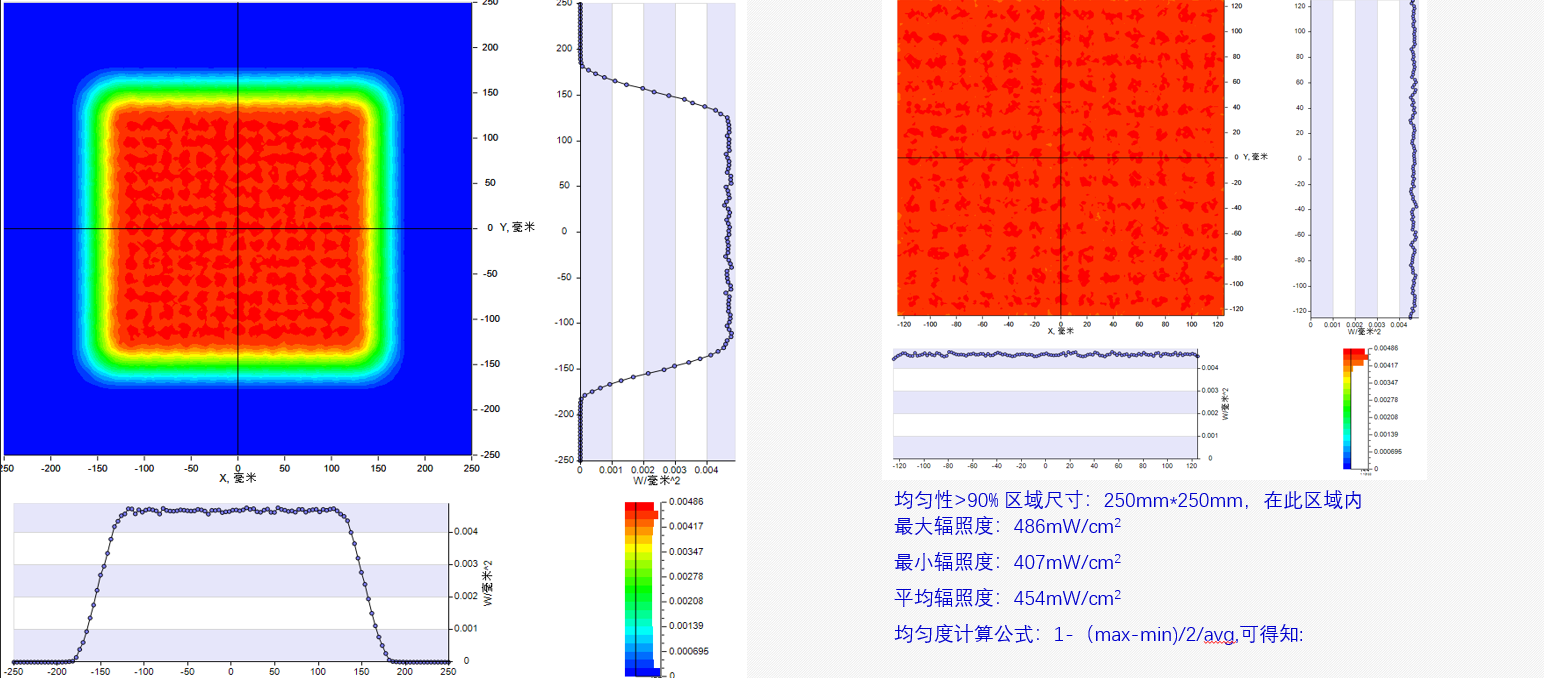

Blue Light (450nm)

Maximum Irradiance: 486 mW/cm²
Minimum Irradiance: 407 mW/cm²
Average Irradiance: 454 mW/cm²
Uniform Area: 250 × 250 mm with over 90% uniformity

Design & Build

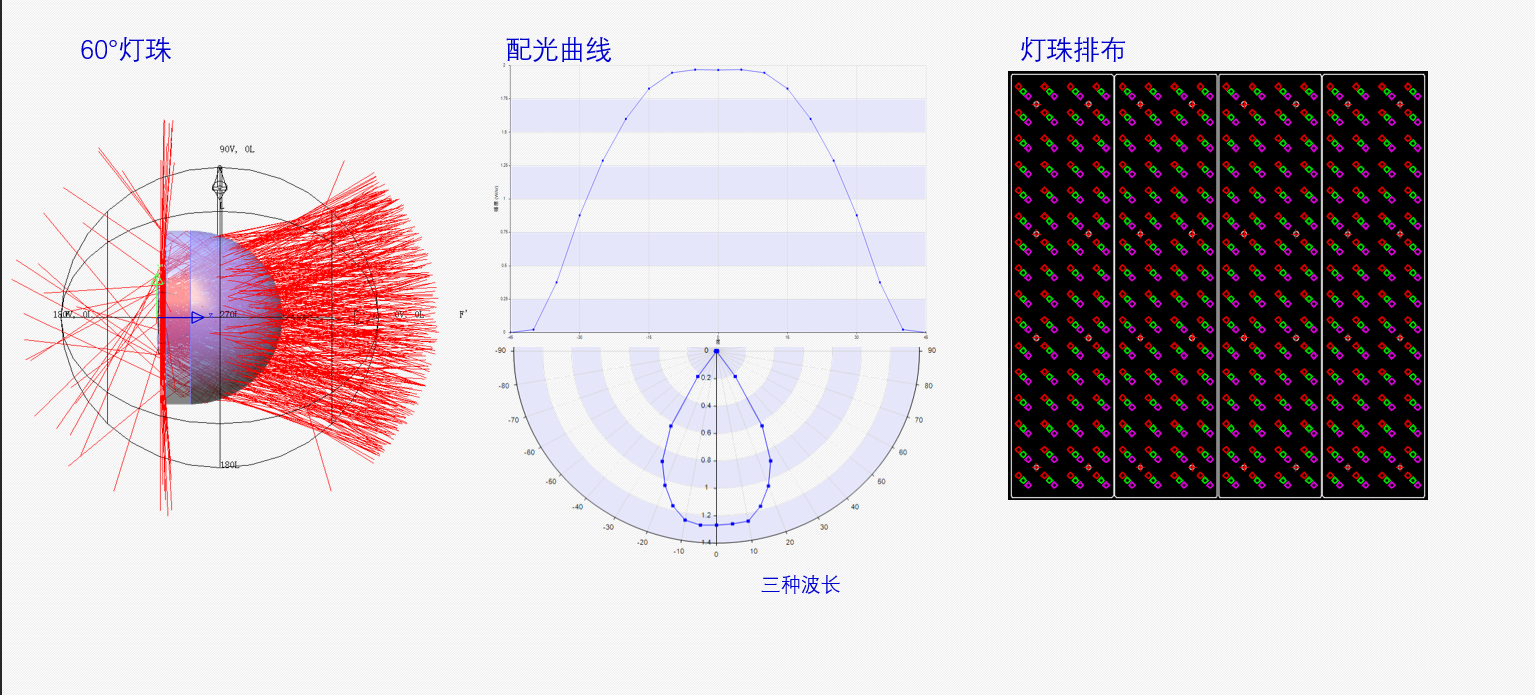

The system features a compact and solid structure with a 300 × 300 mm emitting area. It uses advanced LED arrangement and optical design to ensure even light distribution. The air cooling system keeps the device stable during continuous operation.

Applications

Optical calibration systems
Laboratory testing and measurement
UV curing and exposure processes
Electronics and semiconductor inspection
Research and development projects

Advantages

Multiple wavelengths in one system
High uniformity for accurate results
Reliable performance for industrial use
Easy power control for different needs
Long service life with stable output
