UV-C LED Disinfection Module HJGLS03-C2

The HJGLS03-C2 UV-C LED Disinfection Module is a compact and highly efficient solution designed for water sterilization applications. Utilizing advanced UV-C LED technology, it delivers a disinfection rate of over 99.99%, ensuring safe and clean water without the use of mercury or chemicals.

Built for reliability and ease of integration, this module features a plug-and-play design, long lifespan, and flexible installation options.

UV-C LED Disinfection Module HJGLS03-C2

Built for reliability and ease of integration, this module features a plug-and-play design, long lifespan, and flexible installation options.

Category UV-C LED Disinfection Modules

Features & Benefits

Disinfectionrate over 99%
UVC-LEDadopted for mercury-free and chemical-free
Plug-and-play
LongLifespan and low light attenuation for high reliability
Installationwith multiple-angle for inlet and outlet

Field Applications

WaterDispenser
WaterPurifier
Humidifier

Precautions

Check the product before use in case of damage due to the transportation. If damaged, please contactour after-sale service department for replacement.
Properinput voltage and current are strictly required while the product is working, otherwise the permanent damage to the product may occur.
Anyexternal mechanical force or vibration on the product should be avoided during
Pre-filtrationshould be used before the UV-C LED disinfection module that can assure inlet water is of sufficient quality to meet required specifications.
Directradiation to human body should be avoided during the assembling and working of the product, to prevent the eyes or skin from being harmed.
Pleaseswitch off the product and press the emergency stop button if the product starts to stay out of operation for a long time.
Productshould be away from direct sunlight or heat and placed ventilated and

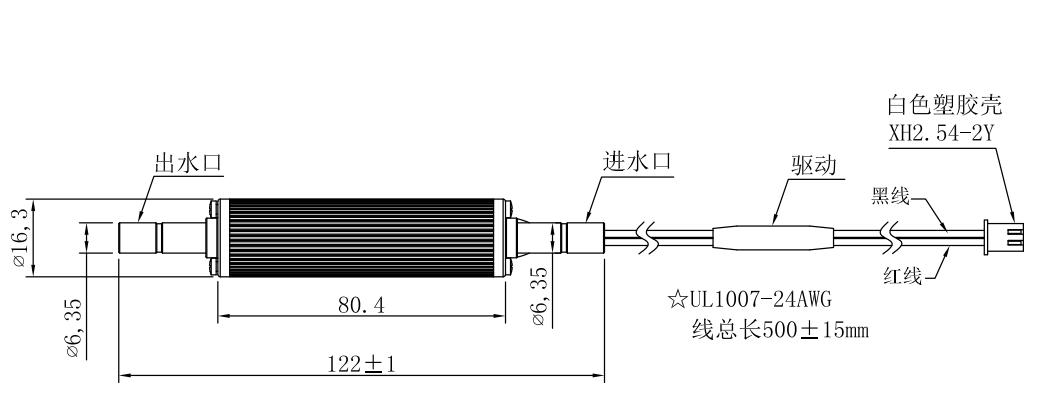

Appearance, Schematic and Dimensions (TBD)

Technical Parameters

Module

Item	Symbol	Parameter	Unit
Color	/	Black	/

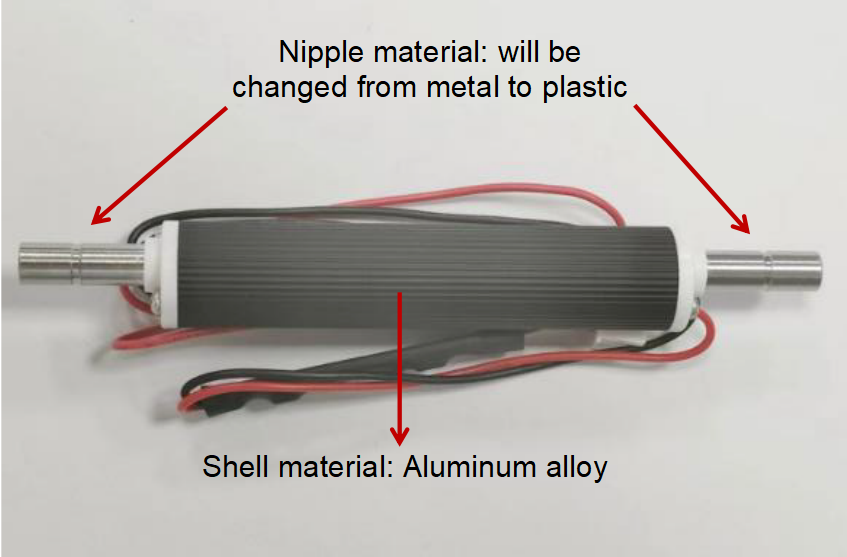

Material	/	Shell: Aluminum alloy Nipple: Plastic	/
Drive	/	Constant voltage	/
Input Voltage	V	DC12-24V	V
Input Current	I	220-320mA@DC 12V 110-160mA@DC 24V	mA
Rated Power	W	3.2±0.5W	W
SMD No.	N	2	pcs
Flow rate	L/min	≤2	L/min
Disinfection Rate	/	≥99.99(Escherichia Coli) @2LPM	%
Waterproof Grade	IP	IP60	/
Working/Storage temp.	/	Working @ 0 ~ 45℃； Storage @ -40 ~65℃	℃
Net weight (power incl.)	/	34±3	g

SMDParameters

Item	Symbol	Parameter	Unit
Radiation Power	LOP	≥100	mW
Peak Wavelength	λp	270~280	nm
Radiation Angle	2θ½	120	°

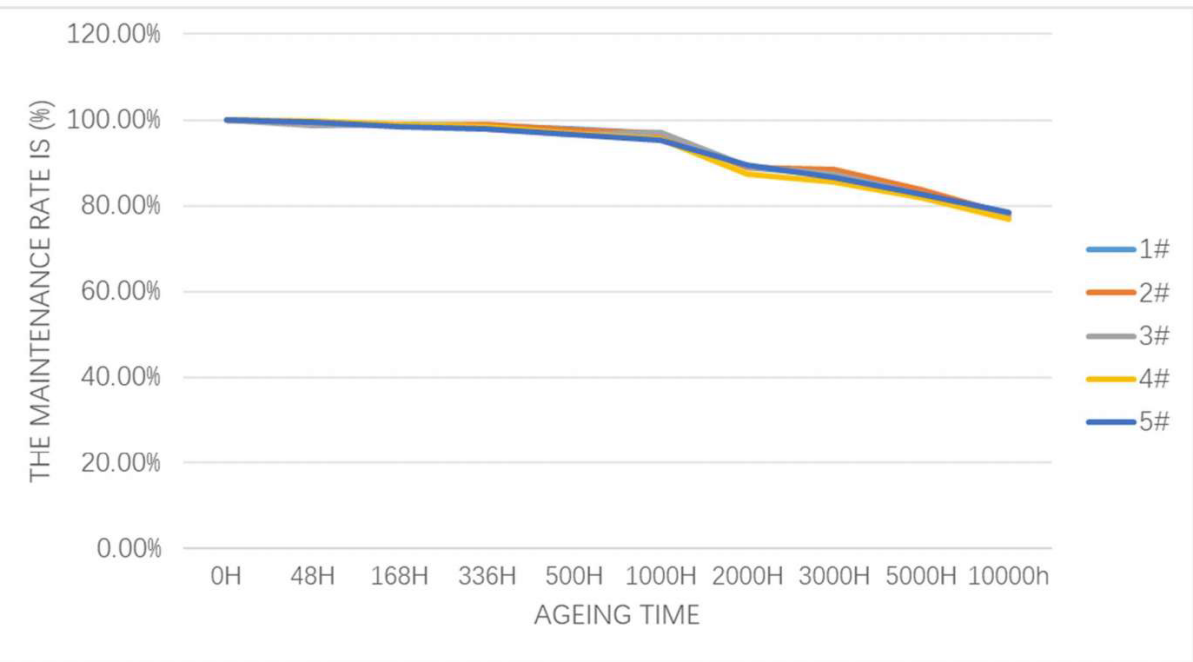

L70 Lifespan*	L70	≥10,000	hours

*L70 lifespan denotes the duration an SMD maintains over 70% of its initial optical power at 200 mA and 25 °C.

WorkingConditions

Item	Symbol	Parameter	Unit
Temperature	T	4~40	°C
Relative Humidity	RH	0~95	%RH
Water Pressure (Max.)	P	0.8	MPa
