Photochemical reaction equipment

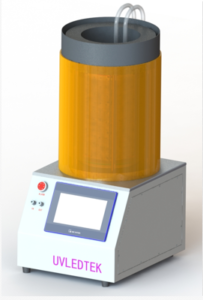

Advanced Photocatalytic Reactor System with Drug-Catalyzed Photochemical Module and Mixed-Wavelength Light Source

Photochemical reaction equipment

Advanced Photocatalytic Reactor System with Drug-Catalyzed Photochemical Module and Mixed-Wavelength Light Source

Category Drug-catalyzed Photochemical Reactor

The Advanced Photocatalytic Reactor System is a high-performance solution designed for precision photochemical reactions in research and industrial applications. It integrates a drug-catalyzed photochemical reactor with a customizable mixed-wavelength light source, enabling efficient and controlled catalytic processes.

Engineered for versatility, this system supports UV-based reactions (UVA, UVB, UVC) with adjustable irradiation intensity and wavelength control. Its advanced thermal management and modular design ensure stable operation, uniform light distribution, and enhanced reaction efficiency.

This reactor is ideal for pharmaceutical synthesis, environmental chemistry, material science research, and advanced photocatalysis applications.

Key Features

Multi-wavelength support (UVA, UVB, UVC)
Drug-catalyzed reaction optimization
High irradiation uniformity
Adjustable power output (5%–100%)
Advanced liquid cooling system
Compact and modular structure
High chemical and thermal stability
Customizable reactor configuration

Technical Specifications

Parameter	Specification
Light Source Type	Mixed Wavelength (UVA / UVB / UVC)
UVB Wavelength Range	310 ± 5 nm
UVC Wavelength Range	285 ± 5 nm
Irradiance (Average)	≥10 mW/cm² (UVB), ≥50 mW/cm² (UVC)
Power Adjustment Range	5% – 100%
Maximum Input Power	Up to 1 kW
Cooling System	Liquid Cooling (Water flow ~10 L/min)
Operating Temperature Control	≤ 40°C (reaction solution)
Reactor Material	Quartz (JGS1), PFA Tubing

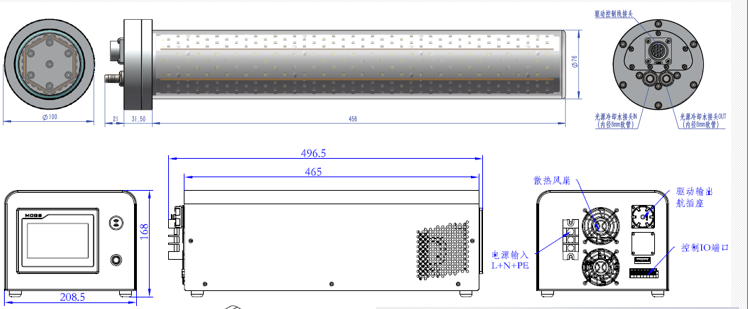

Structure Design	Multi-sided modular light source assembly
Application	Photocatalysis, Drug Synthesis, Chemical Research

Applications

Pharmaceutical and drug synthesis
Photochemical catalysis research
Environmental pollutant degradation
Advanced material development
Laboratory and industrial R&D

Frequently Asked Questions

1. What applications are UVLEDTEK products used for?

UVLEDTEK products are widely used in water treatment, air purification, surface sterilization, industrial curing, biomedical applications, and automotive electronics. Our UV LED technology provides efficient and mercury-free ultraviolet solutions for various industries.

2. Can UVLEDTEK products be customized for specific applications?

Yes. UVLEDTEK provides customized UV LED modules and solutions based on your application requirements, including wavelength, power output, packaging, and system design.

3. What wavelengths are available for your UV LED products?

Our UV LED products are available in multiple wavelengths, including UVC, UVB, and UVA ranges. Specific wavelength options depend on the product model and application requirements.

4. How long is the lifespan of UVLEDTEK products?

UVLEDTEK products are designed for long operational lifetimes with stable performance. Actual lifespan may vary depending on operating conditions, cooling systems, and application environment.

5. Do you provide technical support for product integration?

Yes. Our engineering team provides technical support to help customers select the right UV LED solution and integrate it into their systems or equipment.
